The Address Resolution Protocol(ARP): How Devices Communicate on Local Networks

Understanding the ARP Protocol: A Comprehensive Guide

Introduction to ARP

The Address Resolution Protocol (ARP) is a communication protocol used for discovering the link layer address, such as a MAC address, associated with a given internet layer address, typically an IPv4 address. This mapping is essential for proper functioning of networks as devices need to know each other's MAC addresses to communicate on a local network.

How ARP Works

When a device wants to communicate with another device on the same local network, it needs both the IP address (logical address) and the MAC address (physical address) of the destination device. While the IP address is typically known, the MAC address must be discovered through the ARP process:

1. The sending device checks its ARP cache for an existing mapping.

2. If no mapping exists, the device broadcasts an ARP request packet asking, "Who has this IP address?"

3. The device with the matching IP address responds with its MAC address.

4. The sender updates its ARP cache with this mapping.

5. Communication can then proceed using the MAC address.

ARP Cache Management

Systems maintain an ARP cache to avoid repeated ARP requests. You can view and manage this cache:

• On Windows: arp -a

• On Linux/macOS: arp -n

Entries in the ARP cache typically expire after a few minutes of inactivity, requiring a new ARP request when communication resumes.

To clear hte arp cache use
$ arp -d <ip address to remove entry of >

---

ARP and Network Boundaries

It's important to understand that ARP operates only within local networks and does not cross routers. When a device determines that a destination IP address is on a different subnet (using its own IP address and subnet mask for comparison), it forwards the packet to its default gateway router instead of using ARP to find the final destination.

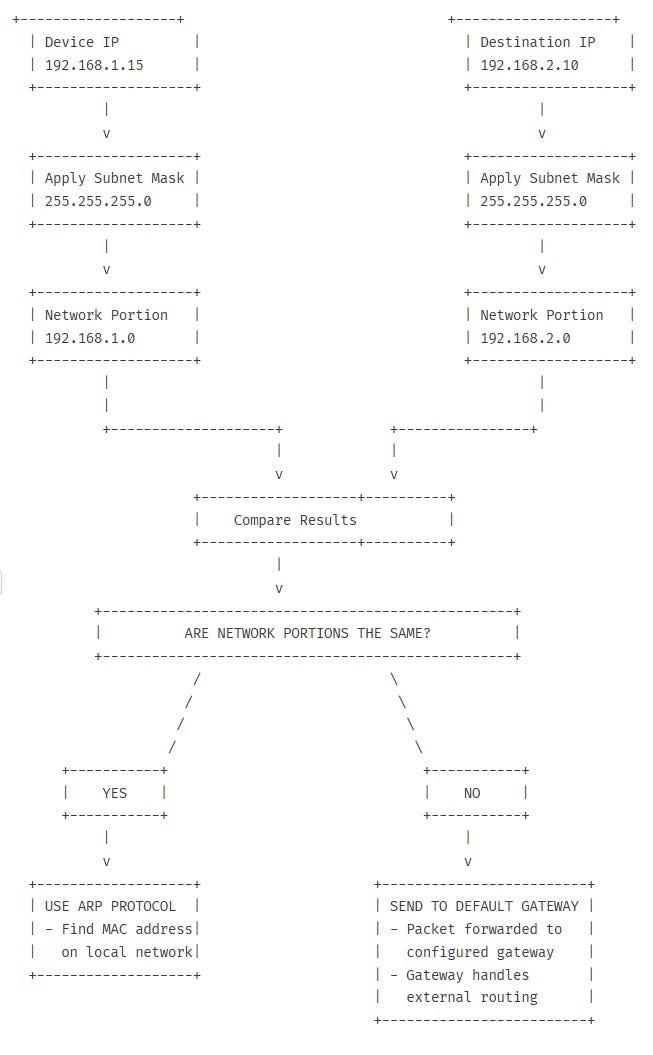

Local Network Determination

Devices determine whether an IP address is on the local network by:

1. Taking their own IP address and applying the subnet mask

2. Taking the destination IP address and applying the same subnet mask

3. If the results match, the destination is on the local network and ARP is used

4. If they don't match, the packet is sent to the default gateway

Examining ARP with Wireshark

Wireshark is an excellent tool for analyzing ARP traffic. Let's examine how ARP works in practice by capturing and analyzing ARP packets.

Capturing ARP Packets

To capture ARP traffic in Wireshark:

1. Open Wireshark and select your network interface

2. Apply the display filter: arp

3. Clear your ARP cache
   (on Windows: arp -d *, on Linux/macOS: sudo arp -d -a)

4. Ping a device on your network to trigger ARP communication
   `ping 192.168.40.3`

Sample Wireshark Output

In this capture:

• Frame 3 shows the ARP request broadcast to all devices (destination MAC: ff:ff:ff:ff:ff:ff)

• Frame 4 shows the ARP reply from the router providing its(192.168.40.3) MAC address

Broadcast Addressing and Subnet Masks

When a device needs to send an ARP request, it uses the local network's broadcast address, which is determined using the subnet mask:

• For a typical home network with mask 255.255.255.0 (/24), the broadcast address is x.x.x.255

• The ARP request is sent to the Ethernet broadcast address (FF:FF:FF:FF:FF:FF)

ARP's Limitations

ARP has several limitations and security considerations:

1. Local Network Only: ARP operates exclusively within the local network segment. For communication across different networks, routing protocols take over, and devices communicate with their default gateway.

2. No Authentication: ARP has no built-in security mechanisms, making it vulnerable to attacks like ARP spoofing.

3. No Encryption: ARP messages are sent in plaintext, potentially exposing network topology information.

Conclusion

The Address Resolution Protocol plays a crucial role in local network communication by mapping IP addresses to MAC addresses. While limited to local networks, it's a fundamental building block for network communication. Understanding ARP's operation, especially through tools like Wireshark, provides valuable insights into network troubleshooting and security analysis.

For internet communication beyond the local network, devices rely on routing protocols and only use ARP to communicate with their gateway. This gateway then handles the routing of packets across the broader internet, where MAC addresses are only relevant for hop-to-hop communications between routers.
