[System Design] Token Bucket Algorithm for Rate Limiting: From Single Server to Distributed Systems

Rate limiting is an essential technique for protecting APIs and services from overuse, whether malicious or unintentional. Among the various rate limiting algorithms, the Token Bucket stands out for its simplicity and effectiveness.

Understanding the Token Bucket Algorithm

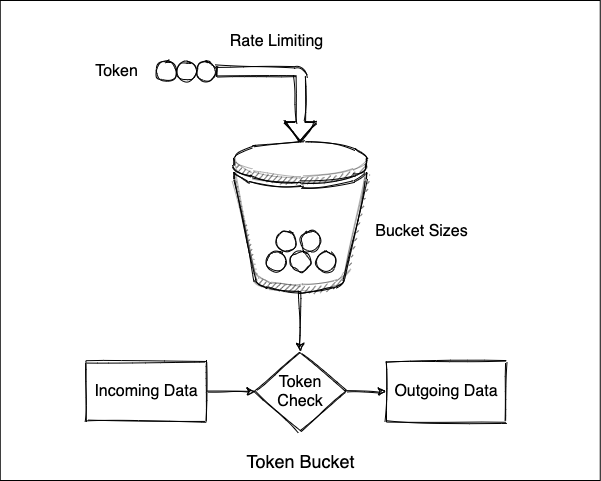

The Token Bucket algorithm uses a simple metaphor: imagine a bucket that holds tokens. Tokens are added to the bucket at a constant rate (the refill rate), and each incoming request consumes a token. If tokens are available, the request proceeds; otherwise, it's rejected or delayed.

Core Components:

• Bucket: A container with a maximum capacity

• Tokens: Units that represent permission to process requests

• Refill Rate: How quickly new tokens are added (e.g., 4 tokens per second)

Implementation for a Single Server

Here's our Python implementation:

import time

class TokenBucket:
    def __init__(self, refill_rate, bucket_capacity):
        """
        Initialize the token bucket.

        Args:
            refill_rate: Number of tokens to add per second
            bucket_capacity: Maximum number of tokens the bucket can hold
        """
        self.refill_rate = refill_rate
        self.bucket_capacity = bucket_capacity
        self.current_tokens = bucket_capacity  # Start with a full bucket
        self.last_refill_time = time.time()

    def allow_request(self, tokens_required=1):
        """
        Check if a request can be allowed and consume tokens if possible.

        Args:
            tokens_required: Number of tokens required for this request

        Returns:
            Boolean indicating if the request is allowed
        """
        self.refill()

        if self.current_tokens >= tokens_required:
            self.current_tokens -= tokens_required
            return True
        else:
            return False

    def refill(self):
        """
        Refill the bucket based on elapsed time since last refill.
        """
        current_time = time.time()
        time_elapsed = current_time - self.last_refill_time

        # Calculate tokens to add based on elapsed time
        tokens_to_add = time_elapsed * self.refill_rate

        # Update token count and cap at bucket capacity
        self.current_tokens = min(self.bucket_capacity, self.current_tokens + tokens_to_add)

        # Update last refill time
        self.last_refill_time = current_time

Example: Single Server Scenario

Let's walk through a concrete example with:

• Bucket capacity: 10 tokens

• Refill rate: 4 tokens per second

Timeline of Events:

1. t = 0ms:

   • Initial state: Bucket has 10 tokens

   • Request arrives

   • Allow request, consume 1 token

   • Remaining tokens: 9

2. t = 300ms:

   • Time elapsed: 300ms

   • Tokens added: 4 tokens/sec × 0.3 sec = 1.2 tokens

   • Tokens before request: 9 + 1.2 = 10.2 tokens (capped at 10)

   • Request arrives

   • Allow request, consume 1 token

   • Remaining tokens: 9

This works perfectly for a single server, but what happens in a distributed environment?

The Distributed Challenge

In modern architectures, applications typically run across multiple servers or containers for scalability and reliability. This presents a challenge for rate limiting.

Problem: Independent Buckets

If each server maintains its own token bucket:

• A system with 4 replicas would effectively allow 4 times the intended rate limit

• Clients could bypass rate limits by distributing requests across different servers

• The overall system would lack consistent enforcement of rate limits

Scenario with 4 Replicas (Independent Buckets)

If each of our 4 servers has its own bucket with capacity 10 and refill rate 4 tokens/sec:

• Total system capacity: 40 tokens

• Total system refill rate: 16 tokens/sec

This effectively quadruples our rate limit, which is unlikely to be the intended behavior.

Solutions for Distributed Rate Limiting

Centralized Token Storage

The most common solution is to use a centralized data store for token information:

1. Redis-Based Implementation:

   • Store token counts in Redis

   • Use atomic operations for incrementing/decrementing

   • Leverage Redis's time-to-live features for token refills

import time
import redis

class DistributedTokenBucket:
    def __init__(self, redis_client, key_prefix, refill_rate, bucket_capacity):
        self.redis = redis_client
        self.key_prefix = key_prefix
        self.refill_rate = refill_rate
        self.bucket_capacity = bucket_capacity

    def allow_request(self, identifier, tokens_required=1):
        """Check if a request is allowed for the given identifier"""
        bucket_key = f"{self.key_prefix}:{identifier}:bucket"
        last_update_key = f"{self.key_prefix}:{identifier}:last_update"

        # Use Redis pipeline for atomic operations
        pipe = self.redis.pipeline()

        # Get current values or set defaults
        pipe.get(bucket_key)
        pipe.get(last_update_key)
        result = pipe.execute()

        current_tokens = float(result[0]) if result[0] else self.bucket_capacity
        last_update = float(result[1]) if result[1] else time.time()

        # Calculate refill
        now = time.time()
        time_elapsed = now - last_update
        tokens_to_add = time_elapsed * self.refill_rate

        # Update tokens
        new_tokens = min(self.bucket_capacity, current_tokens + tokens_to_add)

        # Check if we have enough tokens
        if new_tokens < tokens_required:
            return False

        # Consume tokens atomically
        new_tokens -= tokens_required

        # Update Redis
        pipe = self.redis.pipeline()
        pipe.set(bucket_key, new_tokens)
        pipe.set(last_update_key, now)
        pipe.execute()

        return True

Benefits of Centralized Approach

• Consistent Enforcement: All servers reference the same token count

• Precise Control: Global rate limits are accurately maintained

• Flexibility: Can implement different limits for different users/resources

Considerations for Production Use

1. Performance: Redis operations add latency to each request

2. Reliability: Need to handle Redis failures gracefully

3. Scalability: For extremely high volume APIs, consider:

   • Sharding rate limits by user/resource

   • Using local caches with periodic synchronization

   • Implementing backoff strategies

Further reading resources

1. System Design Interview - Rate Limiting (local and distributed)

Conclusion

The Token Bucket algorithm provides an elegant solution for rate limiting, but requires additional consideration in distributed environments. By centralizing token storage with tools like Redis, we can maintain consistent rate limiting across any number of application instances.

Whether you're protecting your APIs from abuse, managing resource consumption, or ensuring fair usage across your user base, properly implemented distributed rate limiting is an essential component of modern system design.
