ICMP: The Internet’s Built-in Troubleshooter!🚀🔍

The network’s error reporter, keeping connections smooth

ICMP is crucial for network communication because it acts as the error reporter and troubleshooter of the internet. It helps devices detect issues like unreachable destinations, dropped packets, and slow connections. Without ICMP, diagnosing network problems would be difficult, as there would be no built-in way to receive feedback on failures.

Tools like ping and traceroute rely on ICMP to test connectivity and track network paths. Since every IP-based device must support ICMP, it plays a fundamental role in keeping networks running smoothly. 🚀

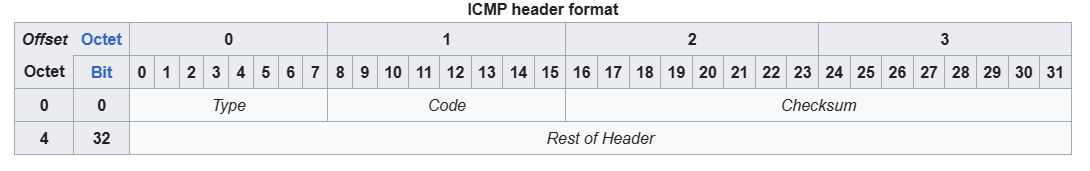

ICMP Header structure:

• Type(1 byte): The ICMP type field identifies the general category of the message. For example:

  • Type 0: Echo Reply

  • Type 8: Echo Request (used by the ping command)

  • Type 3: Destination Unreachable

  • Type 11: Time Exceeded

  • Type 5: Redirect Message, etc.

• Code(1 byte): The ICMP subtype code field provides more specific information about the message type. For example, Type 3 (Destination Unreachable) has several codes:

  • Code 0: Network Unreachable

  • Code 1: Host Unreachable

  • Code 2: Protocol Unreachable, etc.

• Checksum (2 bytes): A 16-bit value used for error-checking

• Rest of Header: 32 bits Four-byte field, contents vary based on the ICMP type and code.

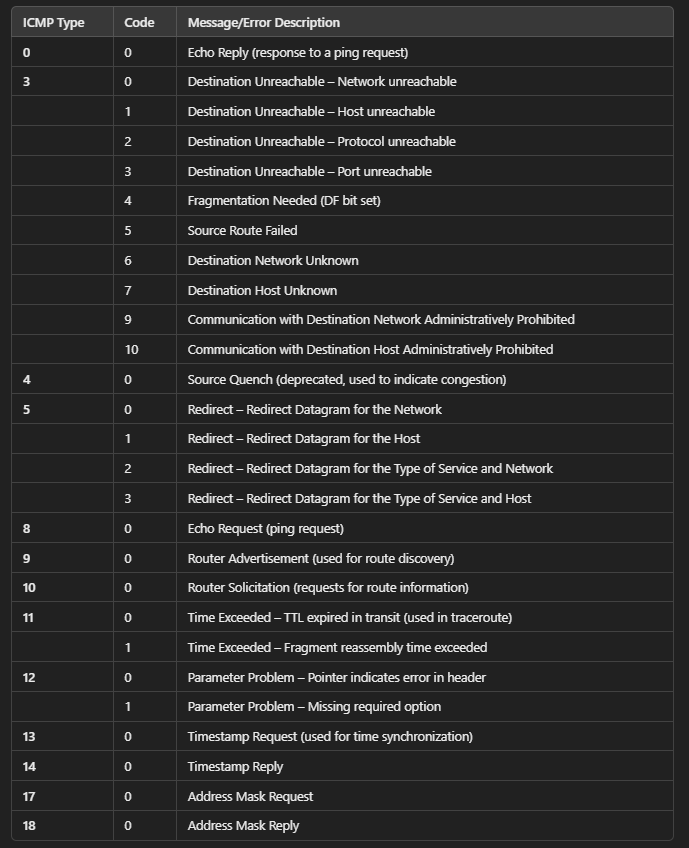

Summary of Message Types

source: rfc792

Some notable ICMP types:

1. Type 11, code: 0 : Time Exceeded - TTL expired, used by traceroute utility

Where ICMP fits in OSI layer?

Short answer:  top of the Layer 3 . In other words, ICMP messages must be encapsulated in IP packets.

• ICMP is encapsulated within IP packets

  • Just like TCP and UDP, ICMP messages are carried inside IP packets.

  • The Protocol field in the IP header is set to 1 to indicate an ICMP message.

• ICMP does not use TCP or UDP

  • Unlike application-layer protocols (e.g., HTTP, DNS) that use transport-layer protocols (TCP/UDP), ICMP operates directly over IP.

  • This is why it’s often mistaken as a higher-layer protocol, even though it’s part of IP.

• ICMP is a fundamental part of IP

  • Every device that implements IP must also support ICMP.

  • ICMP is used for essential network functions like error reporting (e.g., "destination unreachable") and diagnostics (e.g., ping).

  • Without ICMP, IP would have no built-in mechanism for reporting network errors or providing feedback.
